Check out our installation videos and download our installation guide below.
Video Transcript: OK so I’m going to show you a few of the tools you need for your cubicle installation. First one is a drill with a Phillips head attachment. Second one is a level, as well as a measuring tape. You are also going to need a pry bar. And the last is an…
Video Transcript: OK, so I’m going to show you how to attach a panel to your existing workstations. This is a 3-way connection here. You have on this panel, you have a top cleat and a bottom cleat. What we are going to do is we are going to get this close here. We are…
Video Transcript: OK, so now I’m going to show you how to put the trim on that panel. This is a finished end. What we’re going to do is loosen this a little bit. Put this bottom on the bottom cleat, put this on the top and then screw that back down. That installs the…
Video Transcript: OK I’m going to now show you how to install your cantilevers which will actually hold the worksurface up in your cubicle. So this is a cantilever, this is a right handed cantilever. It’s got teeth along here that you can lock into this track. So what we are going to do is…
Video Transcript: OK so now I’m going to show you how to mount your worksurface to your cubicle. So you are going to take that surface. Again you have these cantilevers that are going to support that work surface. Take that surface, position it right here on those cantilevers (you want to make sure you…
Video Transcript: OK so now we are going to show how to install a pedestal. This pedestal is actually holding up the right side of the surface here. The left side is being held up by a cantilever. We are going to first position this pedestal in the right place. We are then going to…
Video Transcript: OK, so now I’m going to show you how to install a shelf. You’ve got these shelf ends or end bells that will have screws here that fit in the grooves here and this shelf pan sits on top of those screws and then they are screwed in. So what we are going…

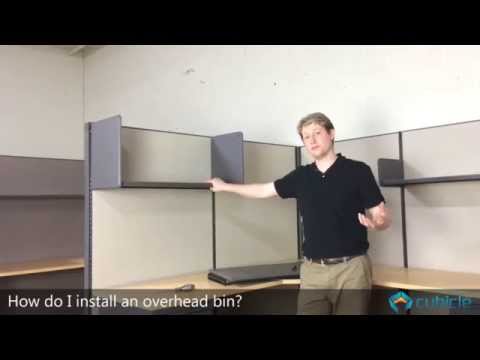

Video Transcript: So this is how to install an overhead bin. First, you are going to want to look at the how to install a shelf tutorial and that will get you to this point. You’ll see these end bells are slightly higher, slightly longer with screws up at the top as well. You are…
Video Transcript: OK, so you are probably asking yourselves why aren’t my electrical pieces connecting? So when you are sent this double block oftentimes this end portion is kind of compressed when it comes now what you can do is you can actually stretch it out pull it out of this block a little bit…
